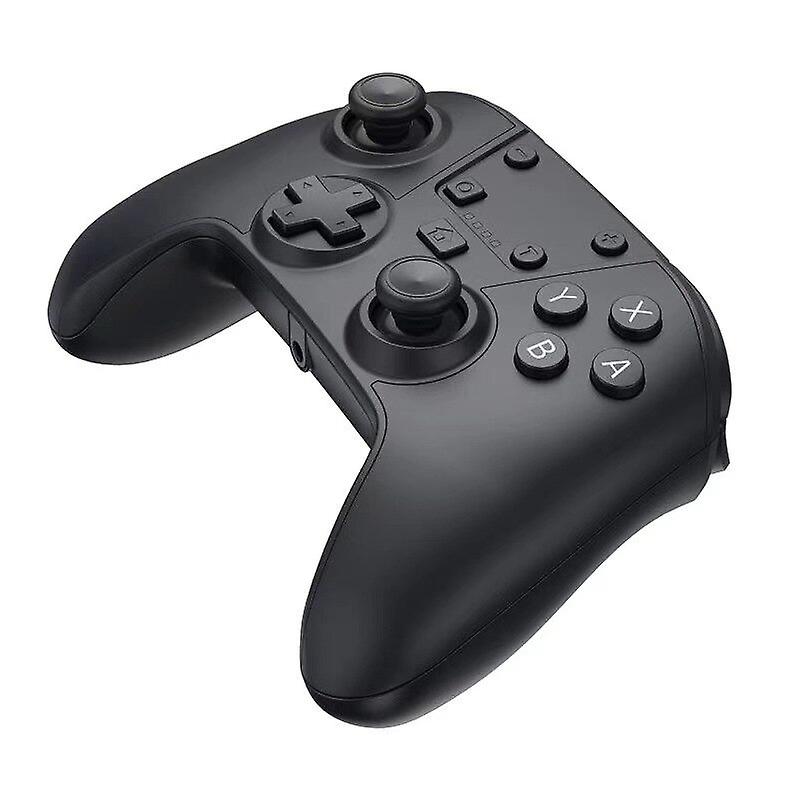

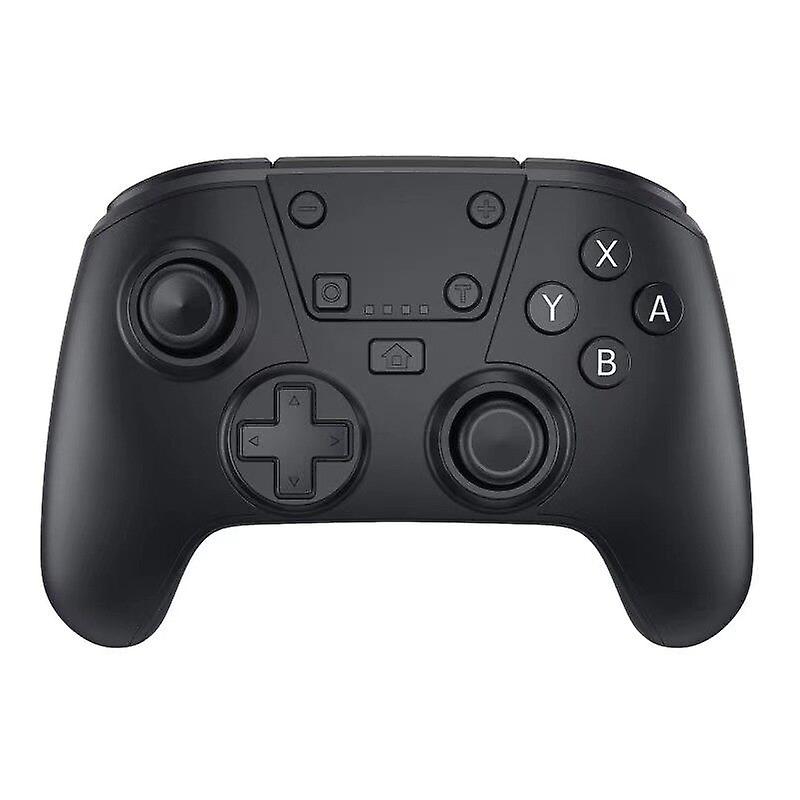

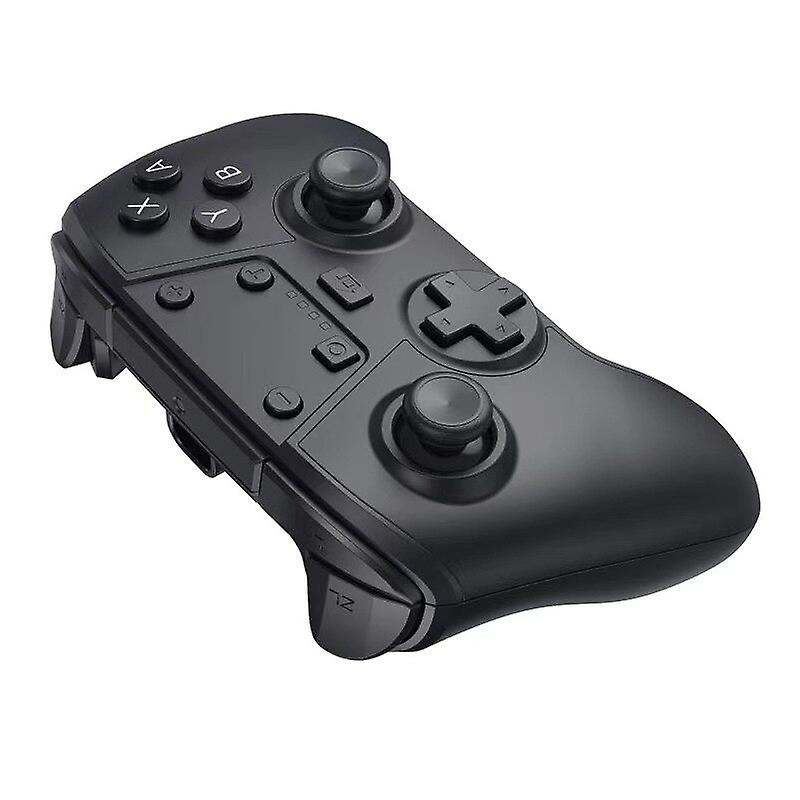

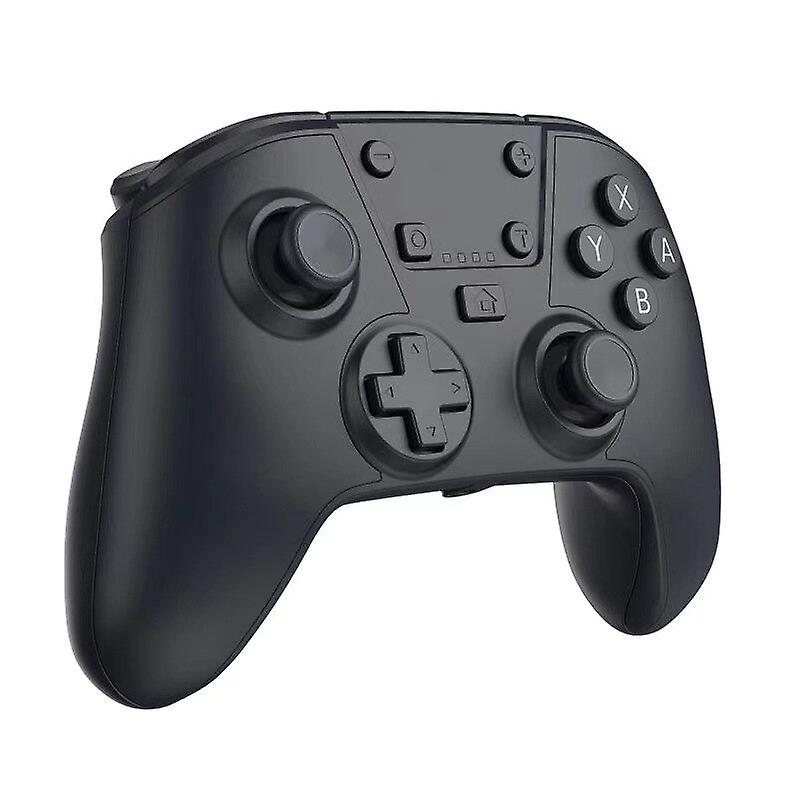

Switch Pro Controller Wireless Gamepad Support Vibration Functions

1. Charging instructions
When the controller is turned off, the LED1-LED4 mode indicators flash slowly when charging, and the LED is off when fully charged.
Battery low voltage alarm: the current mode indicator flashes (fast flash); the current mode indicator flashes (slow flash) under charging, the current mode indicator is always on when fully charged; when pairing, recharging or low battery, pairing , Back-connected LED indication has priority.
2. Automatic sleep/switch machine
When the host screen is turned off, the controller automatically sleeps; if there is no key action within 5 minutes, it automatically sleeps (including sensor actions).
In Bluetooth mode, press the HOME button for 5 seconds to power off and disconnect from the host; short press the pairing button to directly power off, and short press the HOME button for 1 second to power on and wake up the controller.
3. Low voltage alarm
When the power of the handle is low, the current mode indicator flashes to indicate that the power is low. If you continue to use the controller until the controller voltage is at a certain value, the handle will automatically enter the dormant state.
4. USB mode function
(1) Insert the USB port of the charging stand of the SWITCH host through the data cable and automatically recognize it as the SWITCH controller. In the wired mode, turn on the wired handle connection function of the SWITCH host.
(2) It is automatically recognized as X-INPUT handle mode LED1+ LED4 indicator light when plugged into the USB port on the PC through the data cable. In the PC X-INPUT mode, press the “-” + “+” keys at the same time for 3 seconds to switch to D- INPUT handle mode, LED2+LED3 indicator lights are on in D-INPUT mode.
(3) Hold down the L key and then use the USB data cable to connect to the PS3 host, it will be automatically recognized as PS3 handle mode.
(4) When plugged into the USB port of the Android device through the data cable, it is automatically recognized as the Android handle mode, and the LED1+LED4 lights are on.
(5) USB mode LED indicator: SWITCH is automatically assigned by the host to indicate the corresponding channel light; X-INPUT: LED1+LED4 indicator light is on; D-INPUT: LED2+ LED3 indicator light is on; PS3 mode: channel indicator light is allocated by the host.
5. TURBO speed adjustment
3 gears burst speed, 8Hz-12Hz-15Hz; the default is 12Hz.
Hold down the TURBO button and then press the corresponding button to set TURBO; you can set A, B, X, Y, L, ZL, R, ZR;
To cancel the setting, repeat the setting operation.
Adjust TURBO speed:
TURBO+UP: Increase the burst speed by one gear;
TURBO+DOWN: Decrease the burst speed by one gear.
6. SWITCH motor vibration intensity adjustment
At the same time, long press the L+ZL+R+ZR key for 3 seconds to adjust. There are 3 levels of intensity: 25%-50%-100%; the default is 50%.
After setting, the corresponding gear indicator is always on for 1 second and the motor vibrates for 1 second.
7. Six-axis correction
In the shutdown state, press and hold “B” + “-” + HOME at the same time to turn on, and the front and back lights flash each other, press the “+” key again to calibrate.
8. Reset function
When the handle function is abnormal or crashes, you can reset the controller state by short pressing the pairing button.

Color	black, Red and blue, Green, Purple Orange
