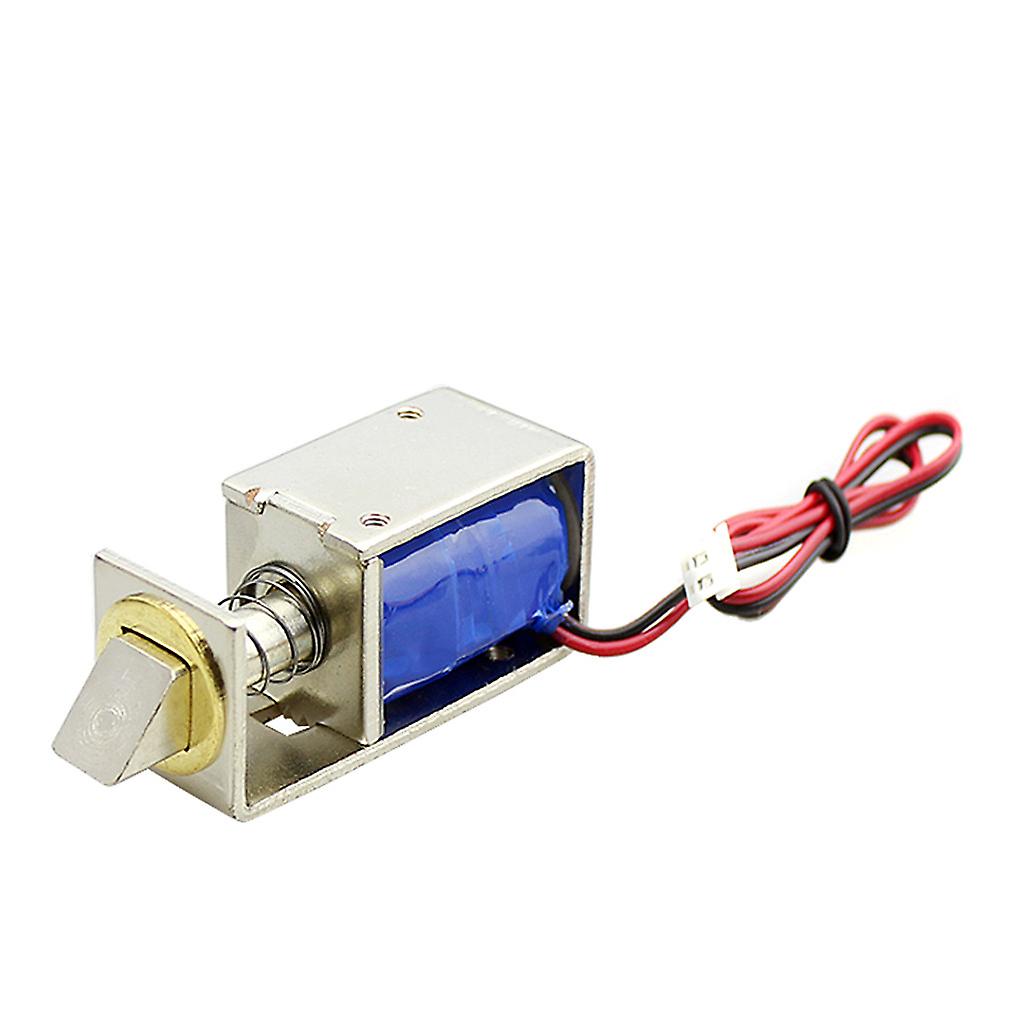

Dc24v/1.2a Electric Lock Automatic Assembly Solenoid Cabinet Drawer Door Lock

Description:
100% brand new and high quality

Features:
Made of high-quality metal material, anti-rust, durable and sturdy.

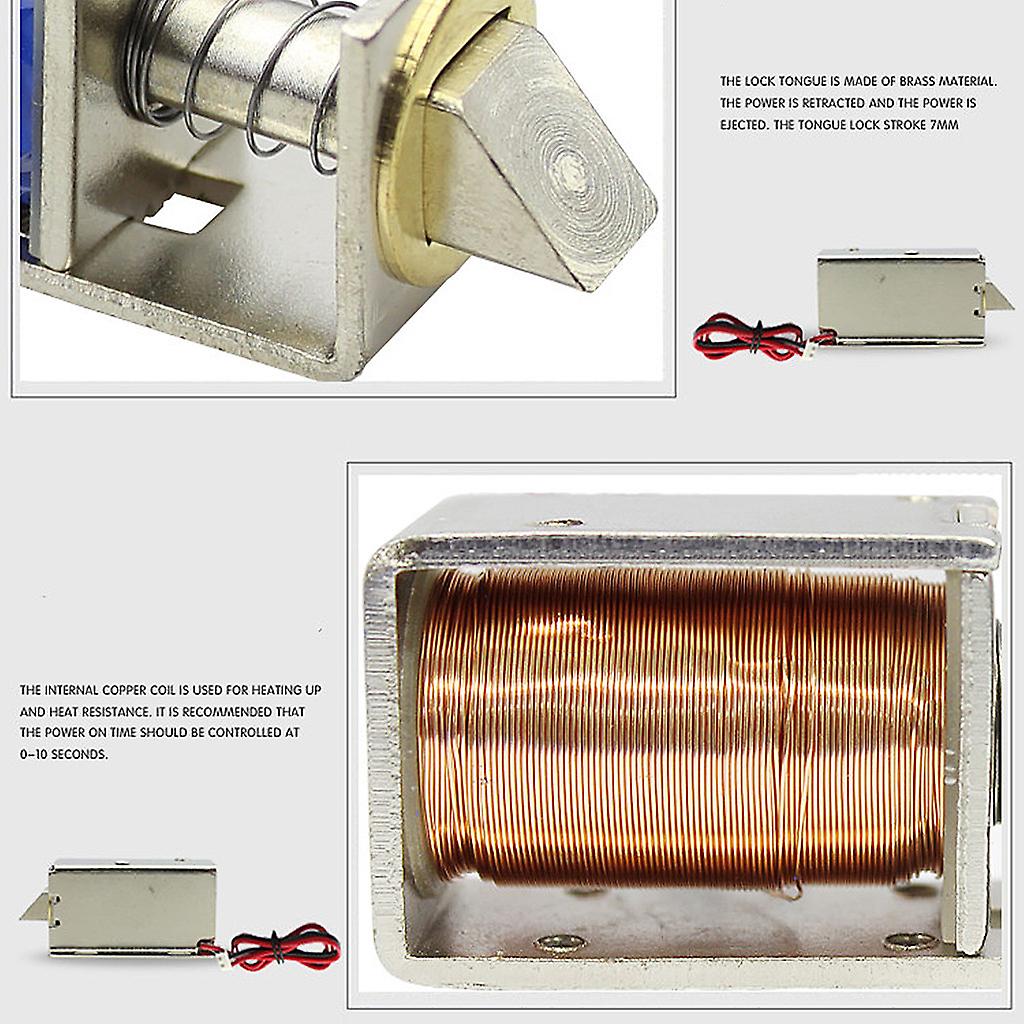

Inner copper wire circle, stable temperature rise, heat-resistant. Recommand to control the power on time of 0-10S.
Slim design, security and stability, low power consumption.
Designed with the open frame type and mount board, easy to installation.
Connected to a stable power supply, the central slug will be drawn and open when it’s energized. And when it is not energized, the slug will stick out and close. It doesn’t use any power in this state.

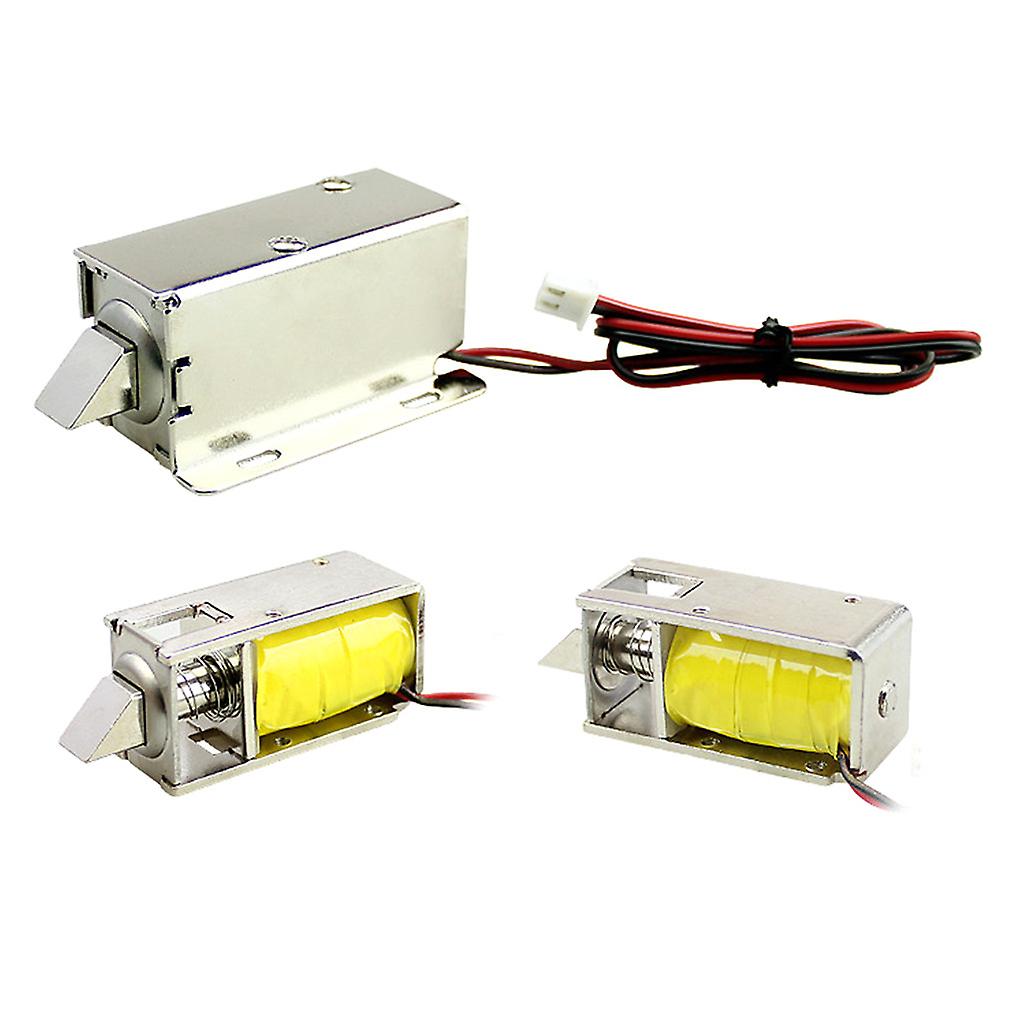

Two options: with or without lock catch, to meet your needs.
Suitable for doors, file cabinets, display cabinets, lockers, drawers, vending machines, automation equipment, etc.
Electric Cabinet Lock only, other accessories demo in the picture is not included

Specifications:
Item Type: Electric Cabinet Lock

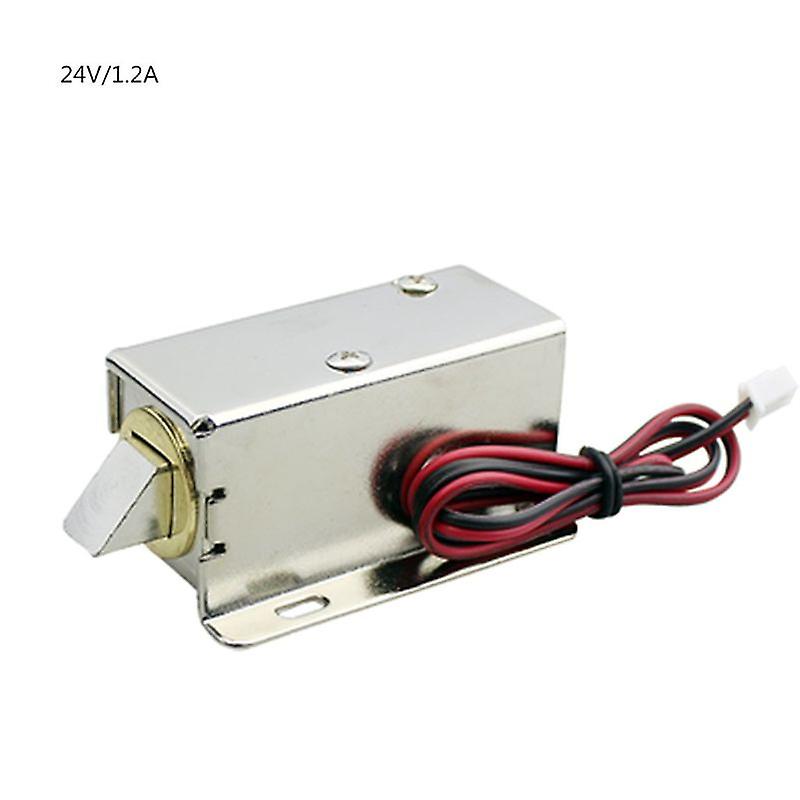

Voltage: DC24V/1.2A
Continuously Energized: less than 10S
Rated Stroke: 10mm
Latch suction: less than and equal to 1N(100g)
Working mode: power on unlock, power off lock
Material: Metal
Size: Length: 55mm/2.16in
Color: Silver
Optional Type: A: without lock catch, B: with lock catch
Quantity: 1 PC

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you

Package Includes:
1 x Electric Cabinet Lock
