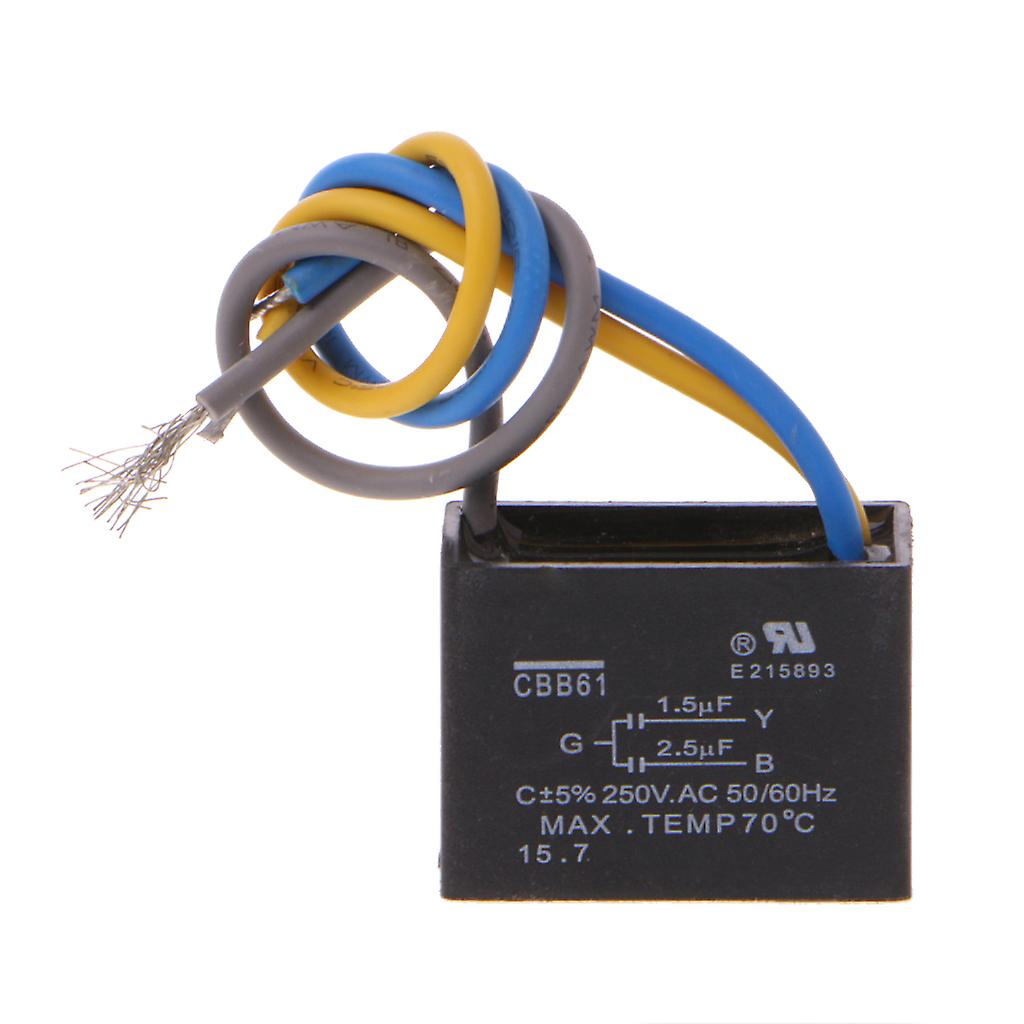

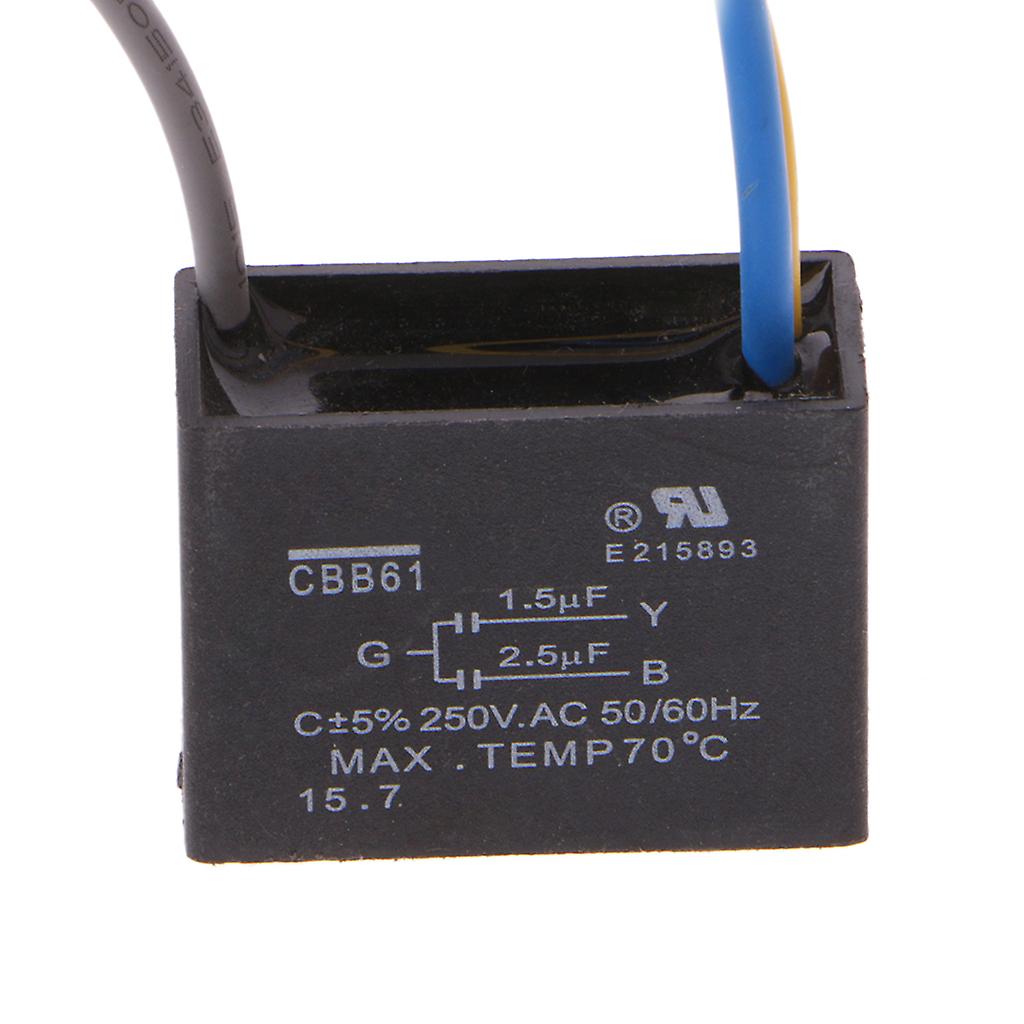

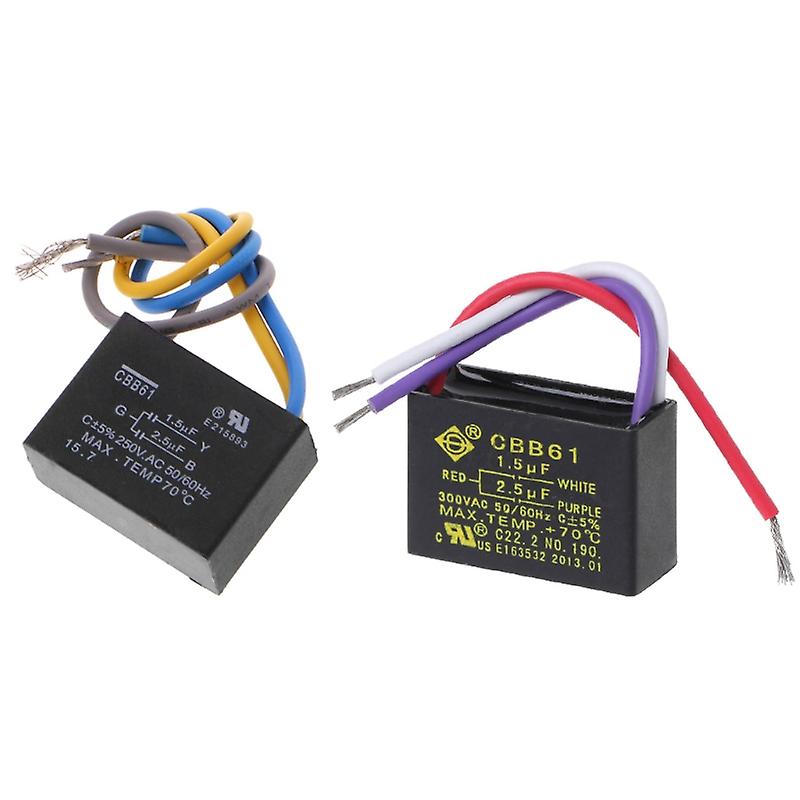

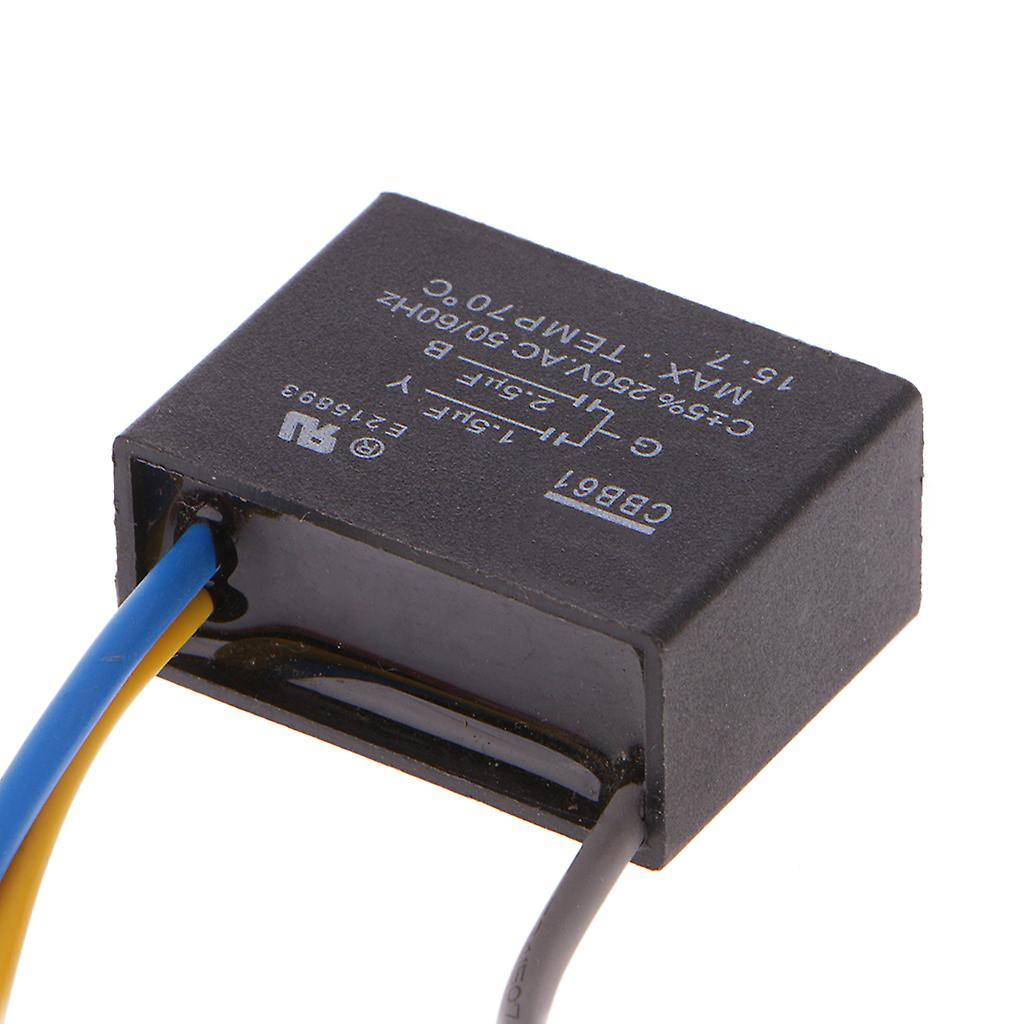

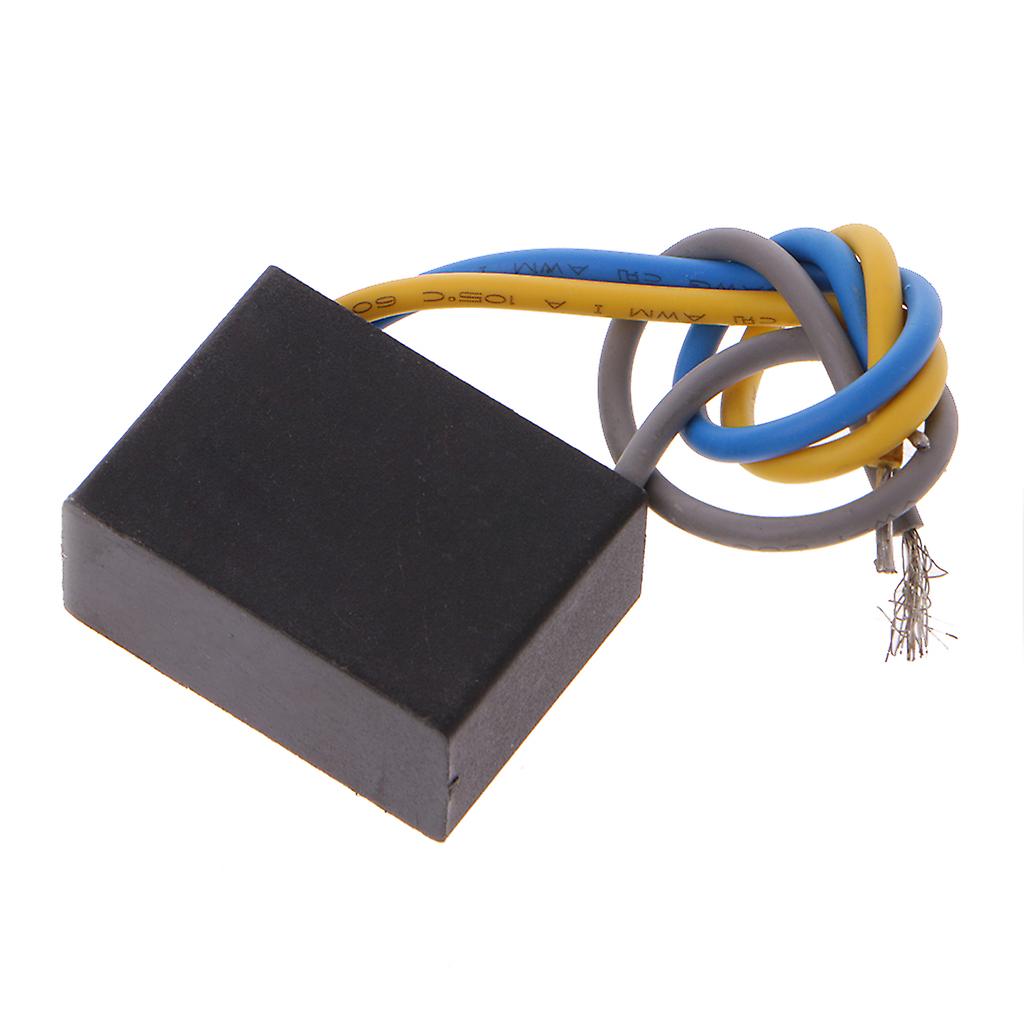

Black Cbb61 1.5uf+2.5uf 3 Wires Ac 250v 50/60hz Capacitor For Ceiling Fan

Applications:
Fan ceiling fans

Note:
1. This is a CBB61 1.5uf+2.5uf 3 WIRE capacitor 5%, 250V AC and 50/60Hz rating.
2. The maximum operating temperature is +70C.
3. Before throwing away your favorite ceiling fan check the CBB61 ceiling fan capacitor first. It may be weak or burnt out.
4. CBB61 capacitors control the start and stop mechanisms and fan speeds on many different types of ceiling fans motors using these types of capacitors.

Specifications:
Model: CBB61
Working Temperature: -25 to +70C
Working Frequency: 50/60Hz
Rated Voltage: 250VAC
Tolerance:5%
Rated Capacitance: 1.5uf+2.5uf
Color: Black
Cover Material: PF
Type: Metalized Polypropylene Film Capacitor
Wire: 3 wires
Dimensions:
Length: 3.3cm/1.3″
Width: 2.5cm/0.98″
Height: 1.5cm/0.59″
Quantity: 1 Pc

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you
No Retail Package

Package Includes:
1 x CBB61 Capacitor
