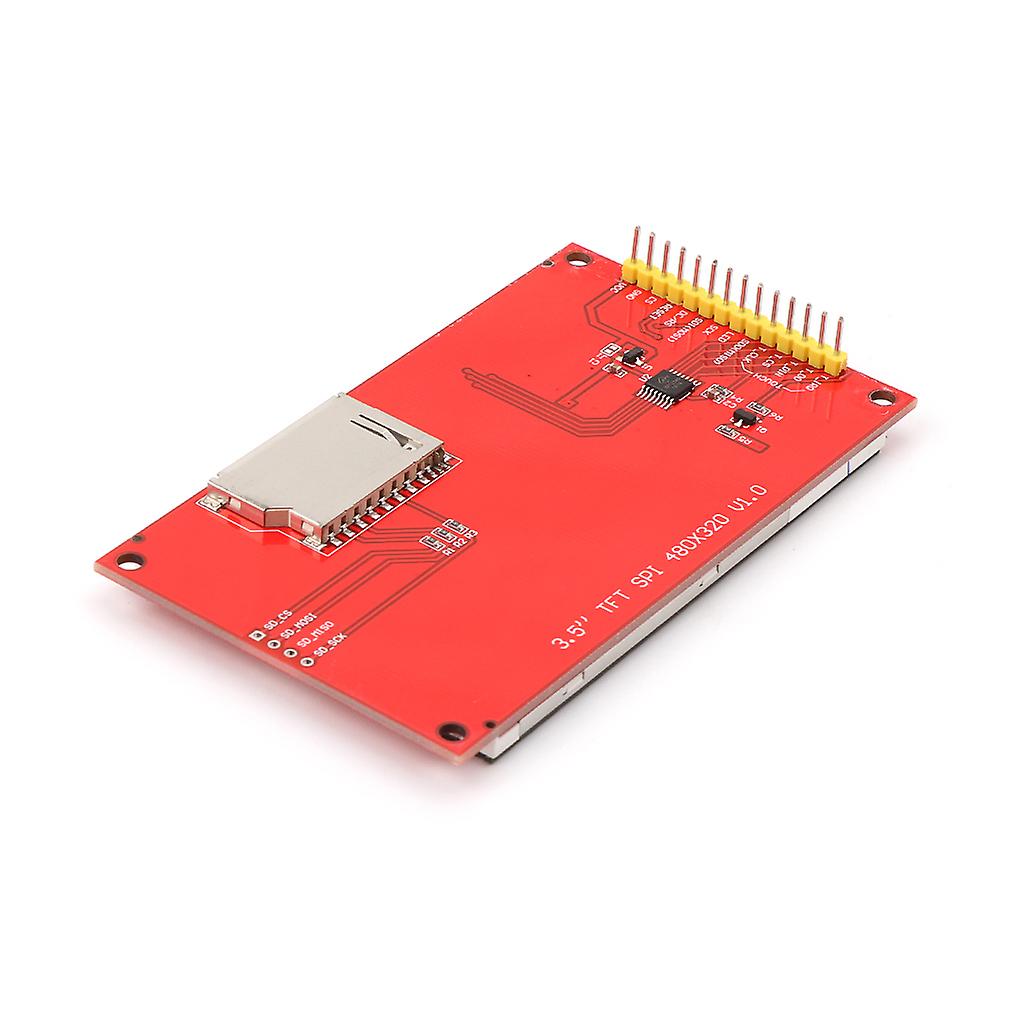

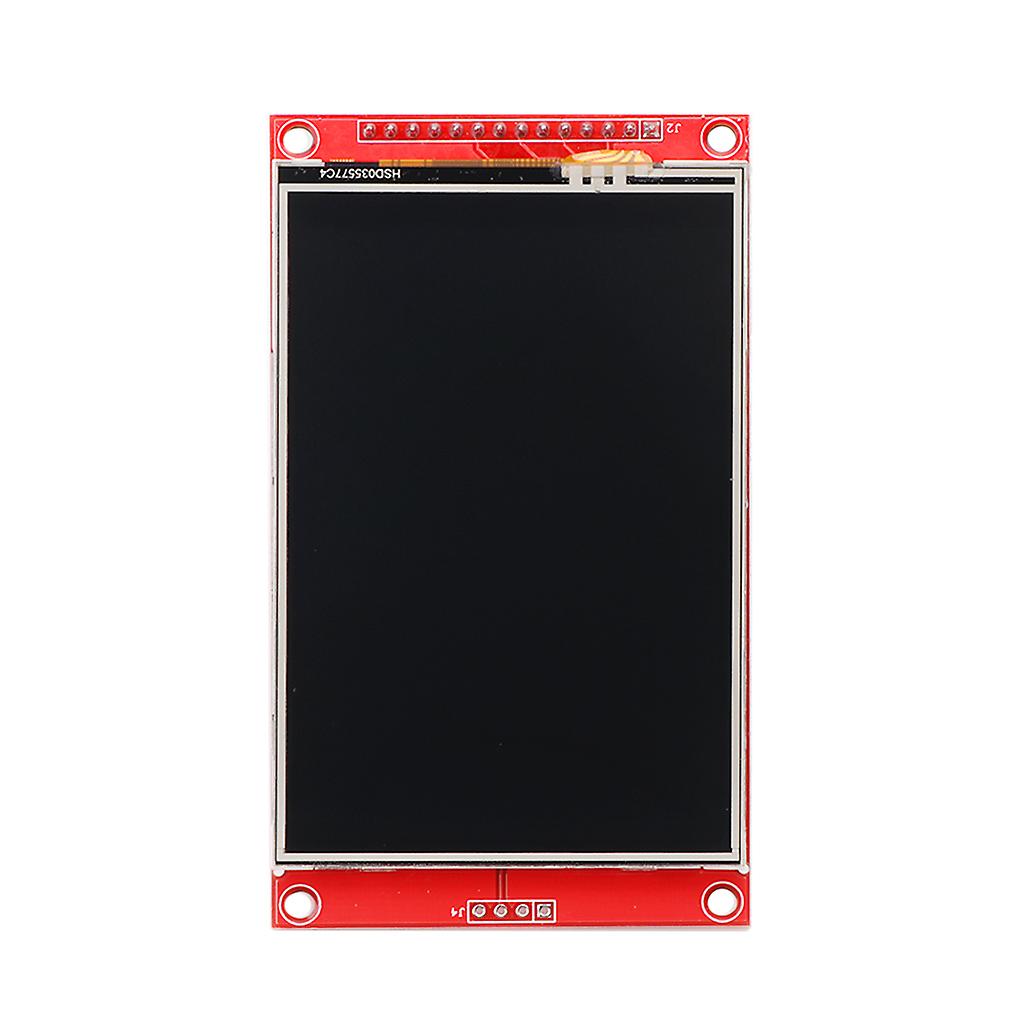

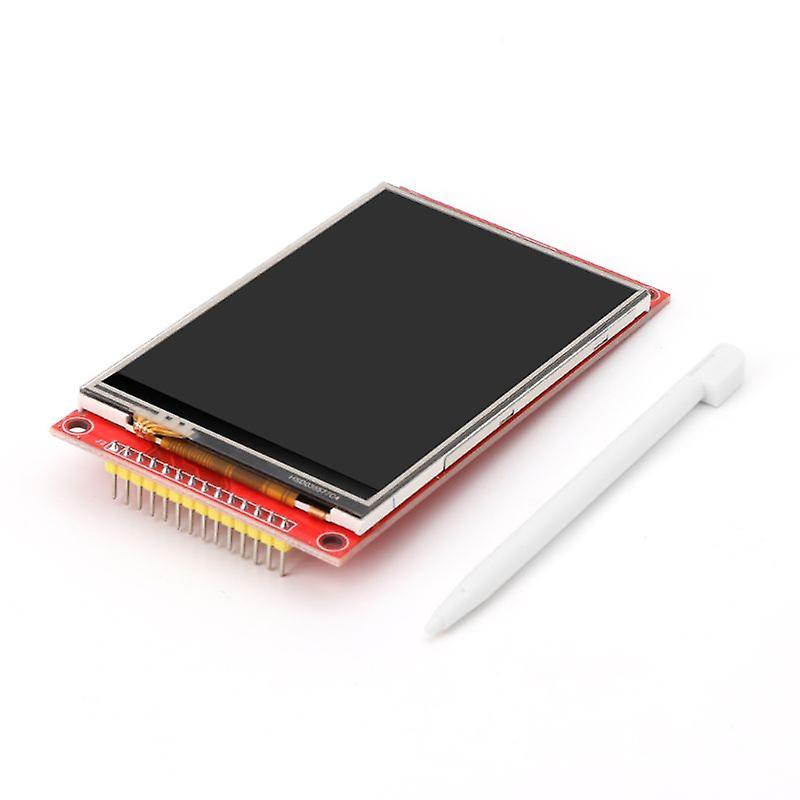

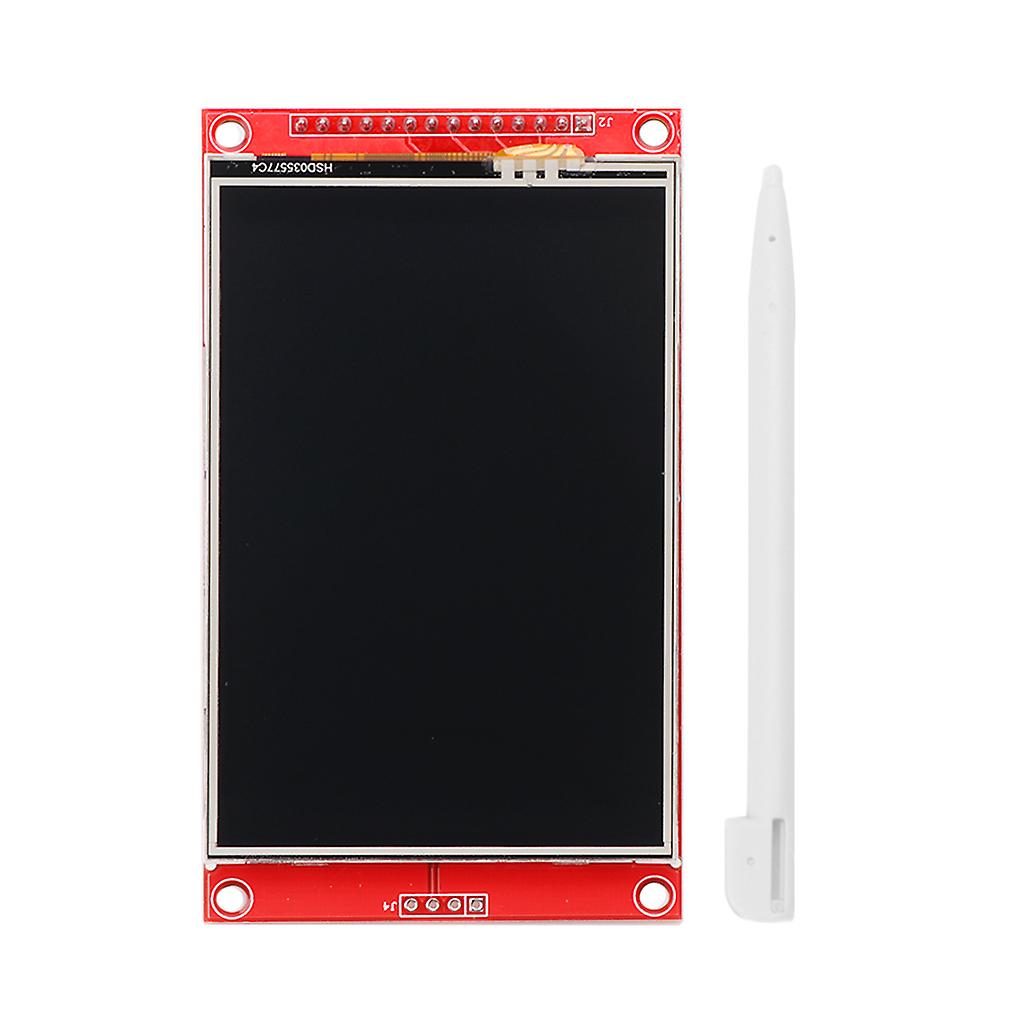

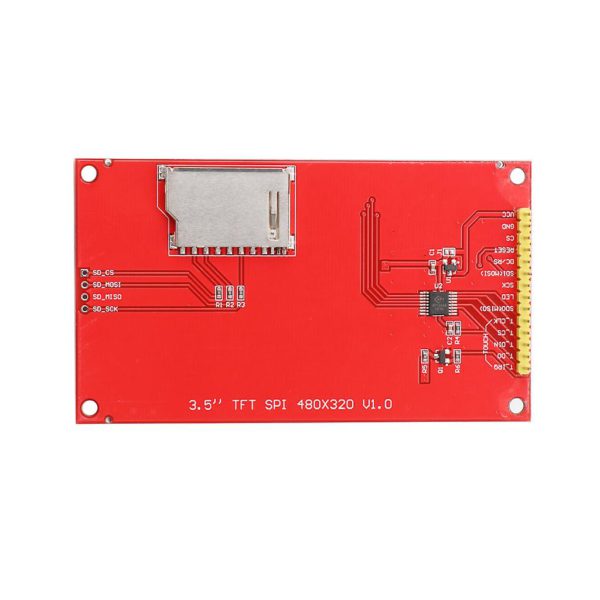

3.5inch 480×320 Spi Tft Lcd Serial Module Display Screen With Touch Panel Driver Ic Ili9488 Digital Spare Parts

100% brand new and high quality

Features:
Vivid TFT Display in 65K Color.
Touch Panel Selected.
SPI Interface, 4 IOs only.
With SD Card Extended (Except 1.44″).
Module Display Screen only, other accessories demo in the picture is not included.

Specification:
Size: 5.5 x 9.8cm(2.17 x 3.86in)
Quantity: 1 Pc
Electrical
Parameters:
Screen Size: 3.5inch
Type: TFT
Driver IC: ILI9488
Resolution: 480 x 320(Pixel)
Module Port: 4-Wire SPI Interface
Effective Display Area(AA): 48.96 X 73.44mm
Mudule PCB Baseboard Size: 56.34 x 98mm
VCC Voltage: 3.3V-5V
Logic IO Voltage: 3.3V(TTL)
Power: 90mA

Note:
1. No retail package.
2. Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you

Package includes:
1Pc x Module Display Screen
